Report

The native_observability_report submodule provides the observability report builder. It is installed by the DASHBOARD preset (drush no:preset:dashboard).

Routes

Route	Path	Permission
native_observability_report.builder	/admin/reports/native-observability/dashboard/report	access native observability dashboard
native_observability_report.settings	/admin/config/development/native-observability/settings/report	administer site configuration
native_observability_report.export_html	/admin/reports/native-observability/dashboard/report/export/html/{export_key}	access native observability dashboard

Report builder workflow

ObservabilityReportBuilderForm drives a three-step workflow: configure the report, generate or refresh a preview snapshot, then open the printable HTML export.

flowchart LR
    A[Configure scope and options] --> B[Generate or refresh preview]
    B --> C[Preview rendered in the form]
    C --> D[Open printable HTML export]
    D --> E[Save as PDF from the browser print dialog]

The module ships no server-side PDF renderer and depends on no headless browser or PDF library. Printable HTML is the only export format. PDF comes from the browser print dialog, on the reader's machine.

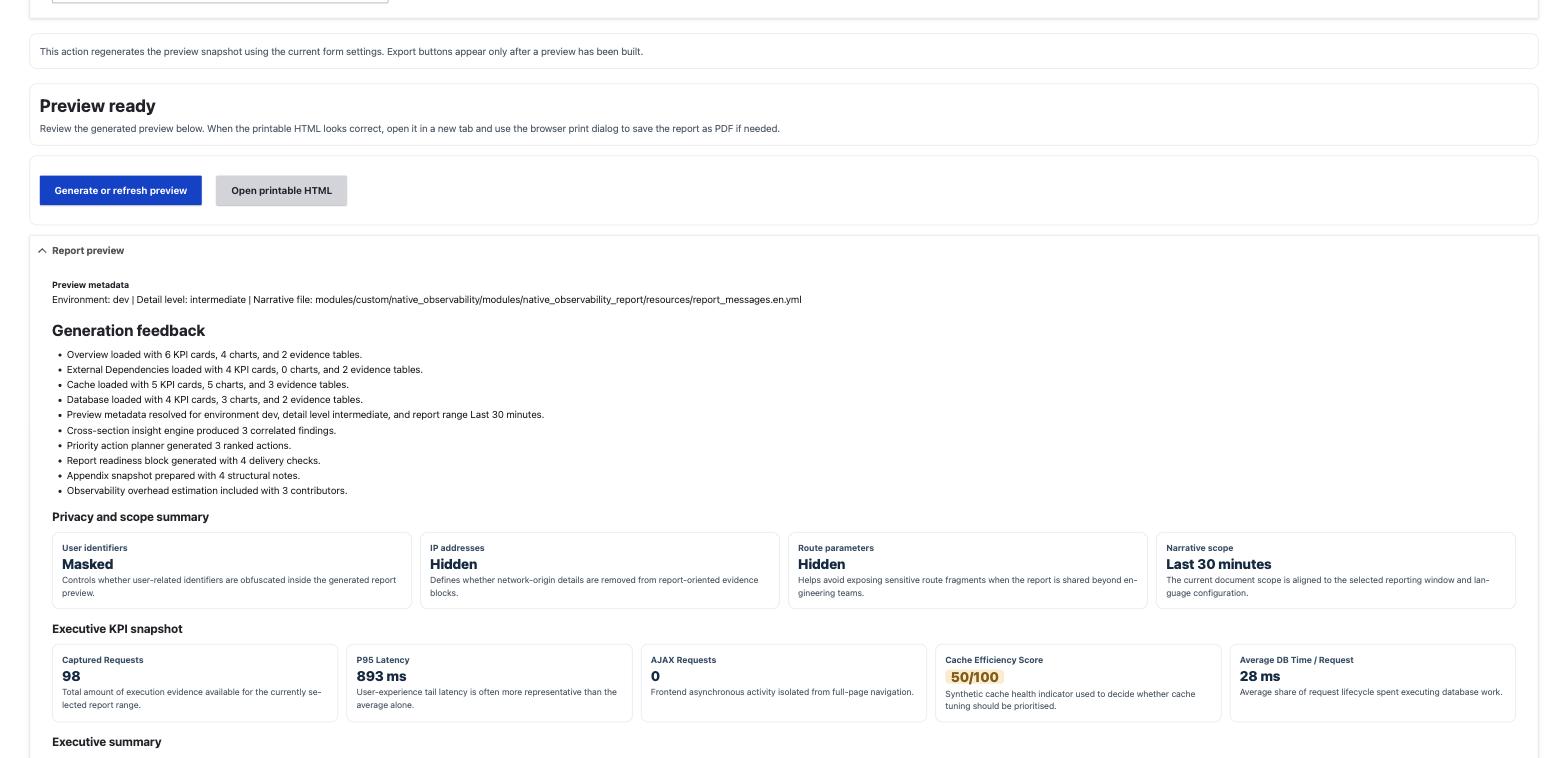

The preview built from the current form settings. Generation feedback lists what each section loaded, the privacy summary shows which identifiers are masked or hidden, and the export buttons appear only once a preview exists.

Composition settings

• Report title. Free-text title used in the document header.
• Detail level. basic, intermediate, or advanced. Controls how deeply each section explains its metrics and recommendations.
• Narrative language. Language code used to select the narrative YAML file for section text.
• Observed time range. One of 15m, 30m, 1h, 6h, 24h, 7d, matching the dashboard range keys.
• Include Overview / Include Cache / Include Database. Toggle which dashboard sections are pulled into the document via DashboardOverviewBuilder, DashboardCacheBuilder, and DashboardDatabaseBuilder.
• Include observability overhead. Shows or hides the overhead disclosure section in this document only. It never changes the publication state or the stored measurement; see Observability overhead disclosure below.

Privacy options

Three toggles decide what survives into the exported document: mask user identifiers, hide IP addresses, hide route parameters. They are described in full, with their limits, in Privacy options below.

Branding

• Organization name, header text, footer text. Free-text fields printed on the exported HTML document.

Every field above starts from a site-wide default. The defaults are not repeated here: they live in one place, with their config keys and current values, in Report settings. Change them there to move the starting point for every new report; change them on this form to affect one report only.

Privacy options in the document

The report is the artefact most likely to leave the operations team: it gets exported to HTML, printed to PDF, and sent to a client or an auditor. Its privacy toggles decide what survives that trip.

Defaults are set on the report settings form at /admin/config/development/native-observability/settings/report, under "Default privacy options", and each one can be overridden per report on the builder form.

Toggle	Config key	Default	Effect on the generated document
Mask user identifiers	default_mask_user_identifiers	on	Obfuscates user-related identifiers inside evidence blocks.
Hide IP addresses	default_hide_ip_addresses	on	Removes network-origin details from report-oriented evidence.
Hide route parameters	default_hide_route_parameters	on	Strips route fragments such as node IDs and slugs, which often carry the identity of the content being viewed.
Include observability overhead	overhead.include_in_document	on	Not a privacy control. Shows or hides the overhead disclosure section; it does not change what value that section shows.

The preview shows the resolved state of all four in its "Privacy and scope summary" block before you export anything, so you can confirm the posture without reading the settings form.

Two limits worth stating plainly:

• These toggles operate on the report document. They do not change what is stored in the trace tables. If an IP was captured in full mode, hiding it in the report leaves the full value in the database. Storage-side reduction is configured separately, in What is stored about people.
• The bundled narrative carries a standing notice (labels.privacy_notice) stating that sensitive operational data may be masked. It says data may be masked, not that it was: it is not evidence of the settings actually used.

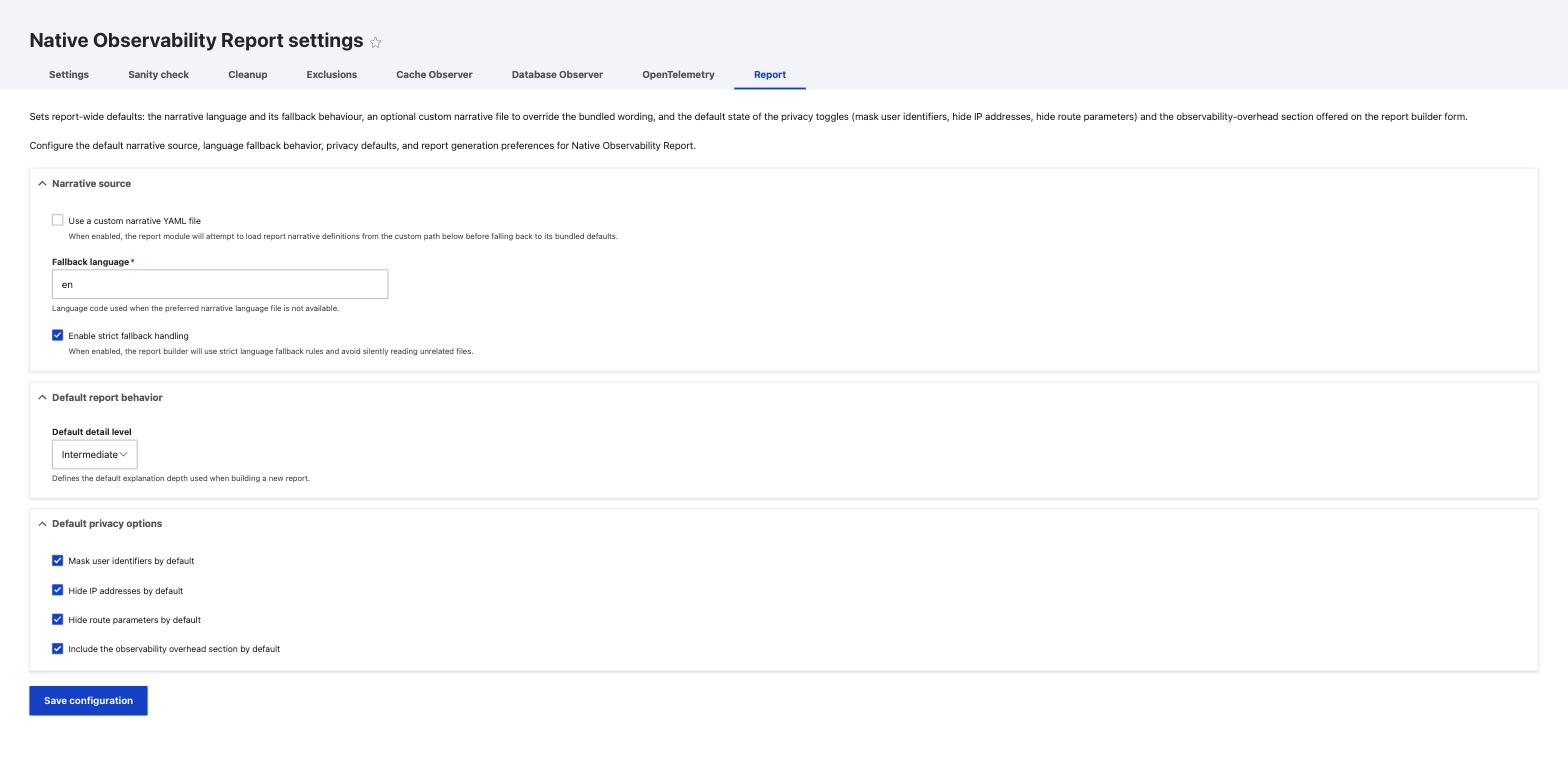

Report settings: the narrative source block on top, the four default privacy toggles below. All four ship enabled.

Observability overhead disclosure

The report can state the cost of running this module alongside everything else it reports. That value has to carry its provenance: "measured on this server" and "typed into a form by whoever configured the report" are different claims about the same-looking percentage, and a reader cannot tell them apart from the number alone.

The section has three publication states, set on the report settings form (/admin/config/development/native-observability/settings/report) under "Observability overhead disclosure", stored as overhead.display:

State	What the report shows	Label printed with the value
Hidden (default)	Nothing. No section is added to the document.	none
Value declared by the document author	The percentage and note entered on this form (overhead.manual_percent, overhead.manual_note)	Value declared by the document author
Value measured on this server	The last measurement recorded by drush no:overhead:measure --record=<workload>, with the workload, pairs, absolute delta and verdict	Value measured on this server

Two rules hold regardless of which state is chosen:

• Whoever writes the document can always hide the section. The per-document "Include observability overhead" checkbox on the report builder form (seeded from overhead.include_in_document) turns the whole section on or off, in any of the three states, for that one document. What it cannot do is show the value with its label removed: the label is not an optional decoration, it is the fact being disclosed.
• A declared value is not a measurement. overhead.manual_percent is typed in by whoever configures the report: an estimate, a figure from a vendor datasheet, a number carried over from a previous report. The Value declared by the document author label says exactly that. Only a value produced by the bundled command and recorded with --record earns the Value measured on this server label. See Measuring the overhead for what the command measures and how.

Setting the state to "measured" without ever recording a measurement is not an error, but it is not silent either: the settings form shows a warning that no measurement is stored on this environment, and the generation form shows the same warning and drops the section from the document until one is recorded. The stored measurement itself is unaffected by this toggle either way; switching the state back and forth never deletes it. drush no:overhead:clear is the only thing that does.

Customising the narrative and its translation

The report is not a table dump: every metric comes with prose that explains it. That prose lives in YAML, not in code, so it can be rewritten or translated without touching PHP.

How the file is structured

The bundled files are modules/native_observability_report/resources/report_messages.en.yml and report_messages.it.yml, around 560 lines each. The top-level shape is:

meta:
  language: en
  version: 1

document:
  executive_summary:
    overall: 'The report currently combines @section_count sections, @chart_count charts, and @kpi_count executive KPIs...'
    overview: 'Overview status is @status with a score of @score/100. Tail latency is currently @p95.'
  labels:
    report_title: 'Native Observability Report'
    privacy_notice: 'Sensitive operational data may be masked or excluded according to the selected privacy options.'
  detail_levels:
    basic: 'Basic'
    intermediate: 'Intermediate'

Placeholders use the @name form and are substituted with computed values. Keep them intact when translating: a sentence that loses @p95 loses the number it was written to introduce.

Adding a language

ReportNarrativeLoader resolves the file by swapping the language segment of the filename. Given a base path ending in .<lang>.yml, it builds candidates for the preferred language first, then for the fallback language, then falls back to the bundled report_messages.en.yml.

To add a language, copy a bundled file, rename the language segment, and translate the values:

cp modules/native_observability_report/resources/report_messages.en.yml \
   modules/native_observability_report/resources/report_messages.de.yml

Editing files inside the module directory means your work is overwritten on the next module update. For anything you intend to keep, use a custom narrative file instead.

Keeping the languages in step

The bundled files are peers: the same 318 leaf keys and the same 20 placeholders. A language that is missing a key does not fail: the loader falls through to the fallback language and then to the bundled English, so a gap shows up as one English paragraph in an otherwise translated report, which is easy to miss. Compare the key sets rather than the files:

ddev drush php:eval '
$leaves = function ($d, $p = "") use (&$leaves) {
  $o = [];
  if (is_array($d)) { foreach ($d as $k => $v) { $o = array_merge($o, $leaves($v, $p . "." . $k)); } }
  else { $o[] = $p; }
  return $o;
};
$dir = \Drupal::service("extension.list.module")->getPath("native_observability_report") . "/resources/";
$a = $leaves(\Symfony\Component\Yaml\Yaml::parseFile($dir . "report_messages.en.yml"));
$b = $leaves(\Symfony\Component\Yaml\Yaml::parseFile($dir . "report_messages.it.yml"));
print implode("\n", array_merge(array_diff($a, $b), array_diff($b, $a))) ?: "in step";
'

A key the report builder reads MUST exist in the narrative file, not only as the default argument of ReportNarrativeLoader::getValue(). A key that lives only in PHP renders its English default in every language, and no narrative file can override it, the language mechanism is bypassed for that string without any error to show for it.

Using a custom narrative file

On the report settings form, under "Narrative source":

1. Tick Use a custom narrative YAML file.

2. Set the path in custom_narrative_file_path, ending in .<lang>.yml so the language swap works, for example private://native_observability/narratives/report_messages.en.yml.

   NarrativePathValidator accepts only three locations, and rejects anything else before the file is read:

   • private://native_observability/narratives/
   • public://native_observability/narratives/
   • the native_observability_report module directory

   private:// is only among them on a site that has a private file system configured; without one it resolves to nothing and drops out of the list.

   Paths containing ../ segments are rejected, as are stream wrappers other than private and public, phar:// among them. A path outside these locations is not a path the report builder will load, however readable it is to the web server. A rejected path is logged with the roots that were allowed, and the report falls back to the bundled file rather than failing. 3. Set Fallback language (fallback_language, default en) to the language used when the preferred one has no file. 4. Decide Enable strict fallback handling (strict_fallback, default on).

Custom paths are tried before the bundled files, and the bundled English file always remains the last candidate, so a missing or unparsable custom file degrades to the shipped wording instead of producing an empty report.

strict_fallback controls how hard the loader tries when the preferred language is missing. With it on, the loader will not silently read a file for an unrelated language; with it off, it widens the candidate list. Leave it on unless you have a specific reason: a report that quietly renders in the wrong language is worse than one that falls back to English visibly.

You do not need to translate the whole file to start. Keys you leave out fall through to the next candidate, so a partial file is a valid file.

HTML export

Generating a preview stores the full preview payload in the private tempstore collection native_observability_report, keyed by report_<uid>_<timestamp>. The Open printable HTML action links to native_observability_report.export_html with that key as {export_key}. ObservabilityReportExportController::exportHtml loads the stored snapshot and renders it through ObservabilityReportDocumentBuilder::buildHtmlDocument. Requesting an export key that is missing or expired returns a 404.
